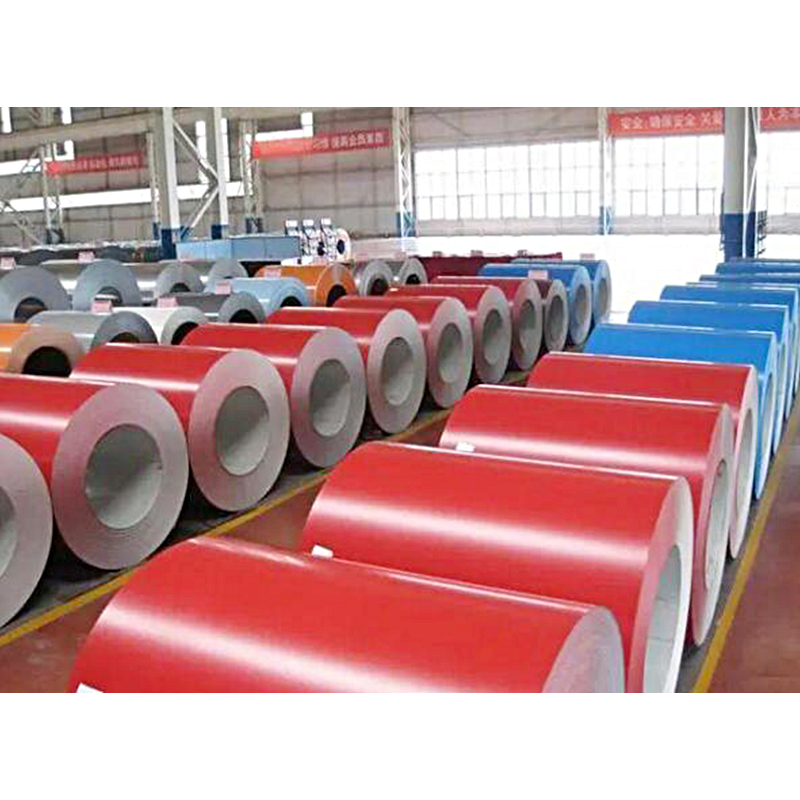

Color Coated Coil

Color coated coil is a product made on a continuous unit with cold rolled coil, galvanized coil, etc. as the substrate, after surface pretreatment (degreasing, chemical treatment), coated with one or more layers of liquid coating by roller coating, and then baked and cooled. It is light, beautiful and has good corrosion resistance. It can be processed directly. The colors are generally divided into gray, sea blue and scarlet. It is mainly used in advertising, construction, home appliance, electrical appliance, furniture and transportation industries.

Consult

Features Technical Indicators Overall Dimension

1. It has good durability and corrosion resistance, and has a longer lifespan than galvanized coils.
2. It has good heat resistance and is less likely to change color at high temperatures than galvanized coils.
3. It has similar processing and spraying properties to galvanized coils.
4. It has good welding properties.

Base thickness	0.13mm-1.5mm
Width	800mm-1300mm
Roll inner diameter	508mm-610mm
Roll weight	4-5 tons/roll
Base zinc layer thickness	15g-120g
Coating thickness	15um-50um
